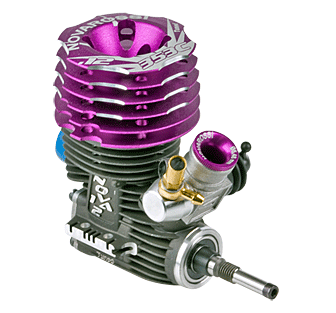

353 RACE.12/C Tuned - NOVAROSSI WORLD

353 RACE.12/C Tuned

Displacement: 2,1 cc R.P.M. (max power): 41.500 RPM Practical range: 6.000-44.000 R.P.M. Bore x stroke: 13,70x14,25 mm Sleeve: 3 travasi Rear ball bearings: ceramic Front ball bearings: acciaio Crankshaft: 11,9 mm - turbo - tuned Carburetor: aluminium - 6,5 mm - slide Glowplug: Turbo (C5TGF) Exhaust position: rear Starting: - Weight: 227 g Fuel type: 16% nitro

FEATURES

Compression rings:
The ignition timing is controlled with these little rings of various thickness. To change the ignition timing you can add or remove a ring of a certain thickness.

Sleeve:
This Piston/Sleeve set is optimized for use in EFRA/IFMAR competition events and is made from hard chromed brass and features 3 transfer ports.

Ceramic ball bearings:
This type of Ball bearing comes with Ceramic High Grade Precision balls. These ceramic precision balls are lighter and stronger which improves performance and reliability over steel balls.

Combustion chamber:
The combustion chamber is supported by an O-Ring which is placed between the combustion chamber and the crankcase to reduce the vibrations of the combustion chamber.

Backplate:
we have made this backplate with a special steel inlay, this reduces friction and wear when the conrod touches it. The round shape reduces the dead space inside the engine.

Venturi:
This Alloy venturi is specially shaped to minimize the boundry layer build up. With this special shape it will maximize the potential performance out put of your engine.

Crankshaft:
This is a special Tuned Crankshaft. Made to meet even the highest standards of our most demanding drivers. Slightly reduced rotational mass and greatly improved fuel flow provide great performance.
