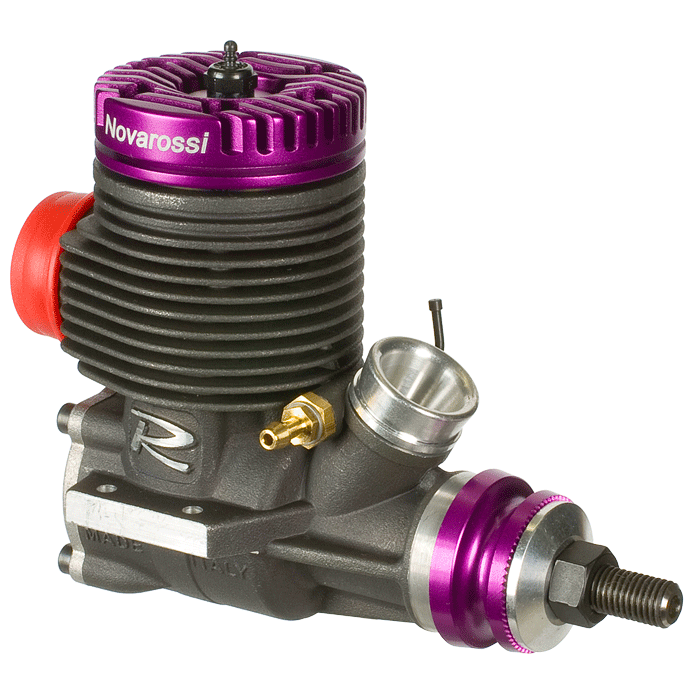

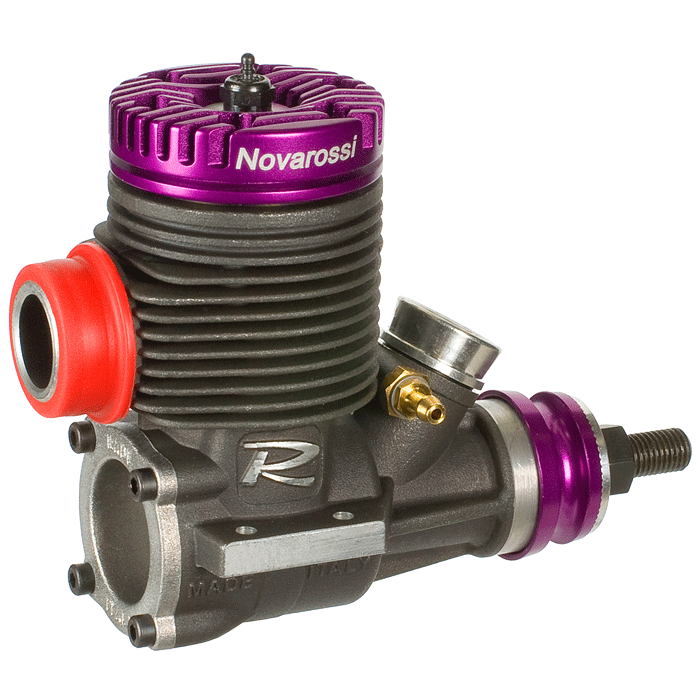

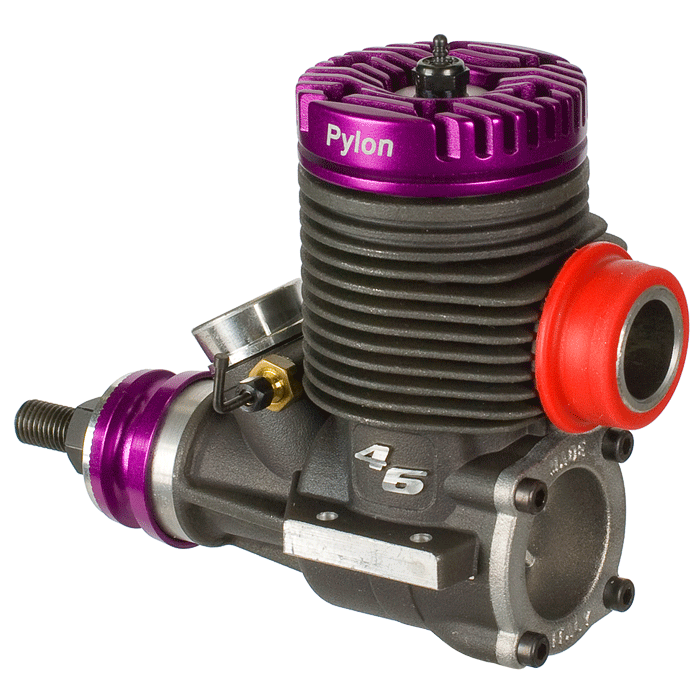

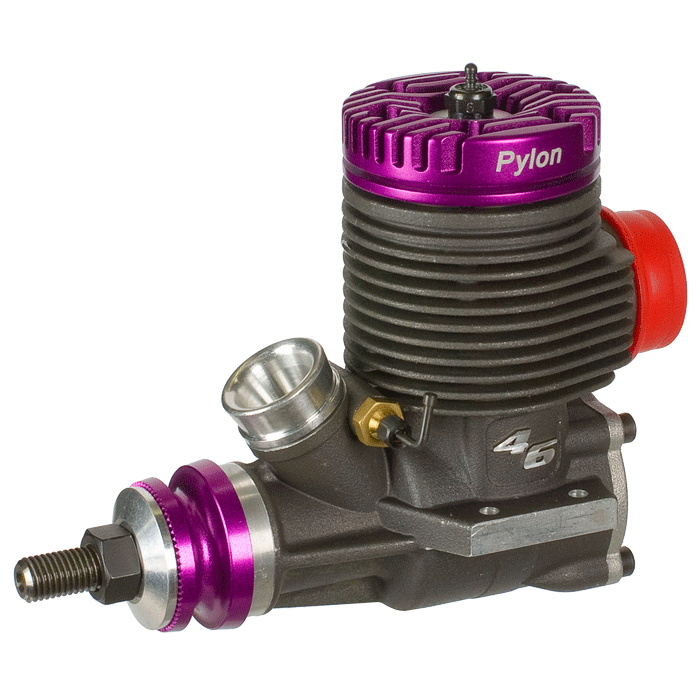

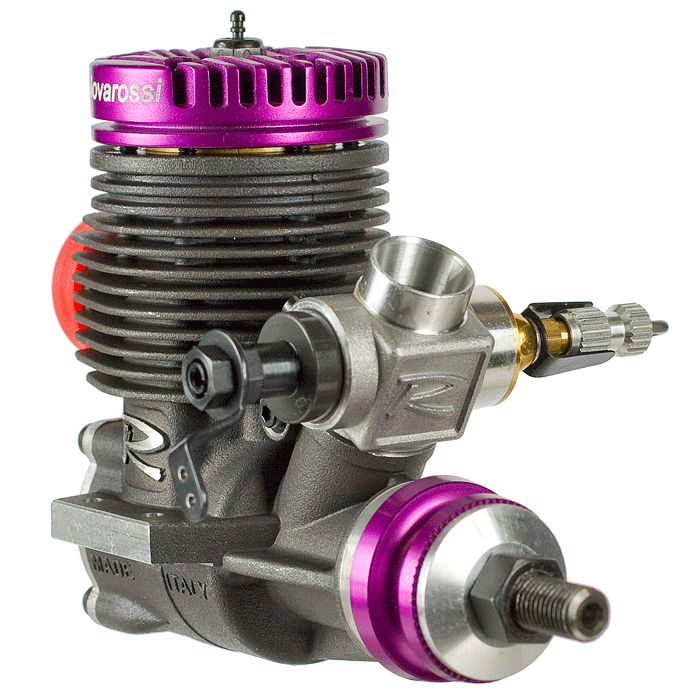

R46F Pylon
Displacement: 7,50 cc R.P.M. (max power): 33.900 RPM Practical range: 3.000-35.500 RPM Bore x stroke: 20,85x21,94 mm Sleeve: 9 ports Rear ball bearings: steel Front ball bearings: steel Albero: 16 mm Carburetor: venturi - 9 mm Glowplug: Turbo (C6TGF) Exhaust position: rear Starting: - Weight: 413 g Fuel type: |
|
 |
 |
||
 |
Also available with carburettor code 10345 (10mm) and 10346 (11mm).
FEATURES
 |
 |
 |
 |
|||||||||||||||||||||||||||||||||||||||||||||||

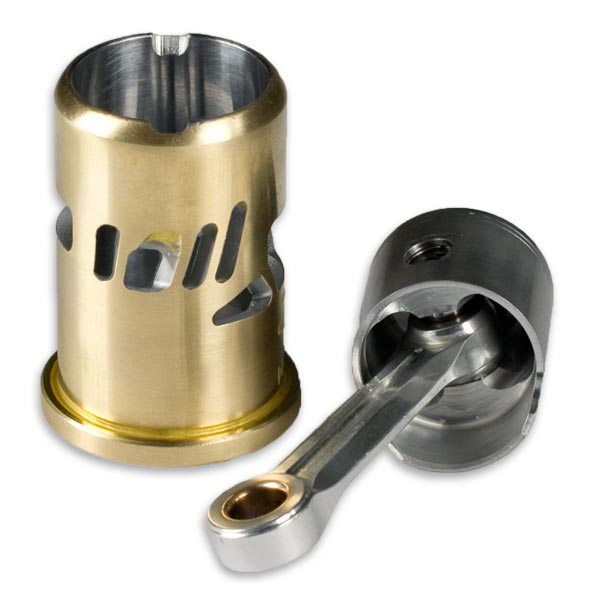

| Sleeve: The sleeve has 9 transfer ports. The special shape and positioning of the ports, improve the internal fluid-dynamics to obtain the maximum possible performance. Lightened CNC machined piston. |

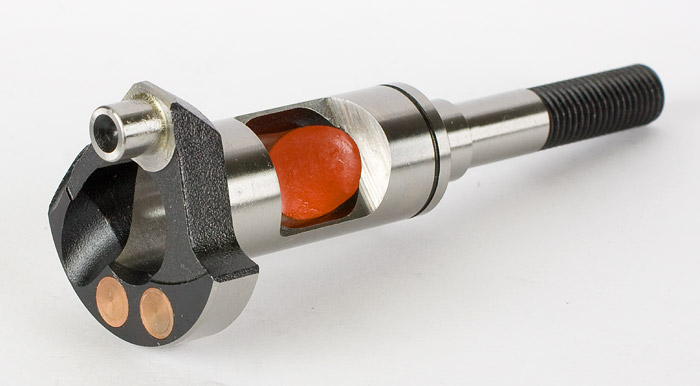

Crankshaft: The crankshaft is grinded to increase the mixture flow and has a special shape to reduce turbulences inside the crankcase. The balancing is done by two inserts made of tungsten alloy and the inlet has a silicon filling to reduce the weight of the crankshaft to improve acceleration. |

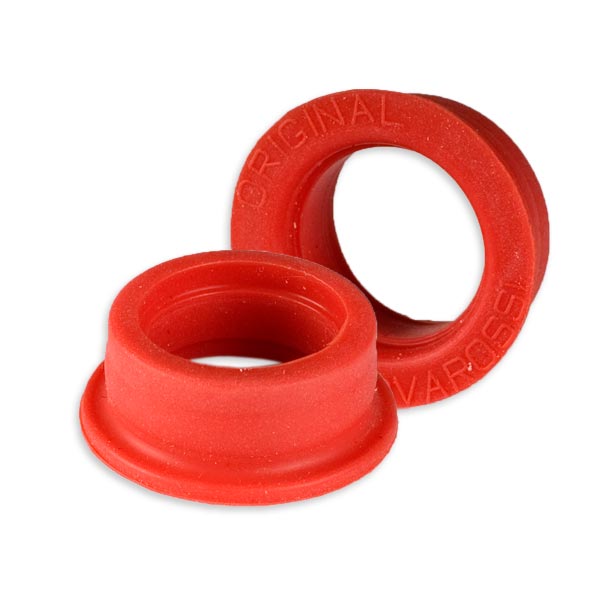

Gasket: The inner shape of the gasket has a special shape. These gaskets use a special rubber that are more resistant to high temperatures. |

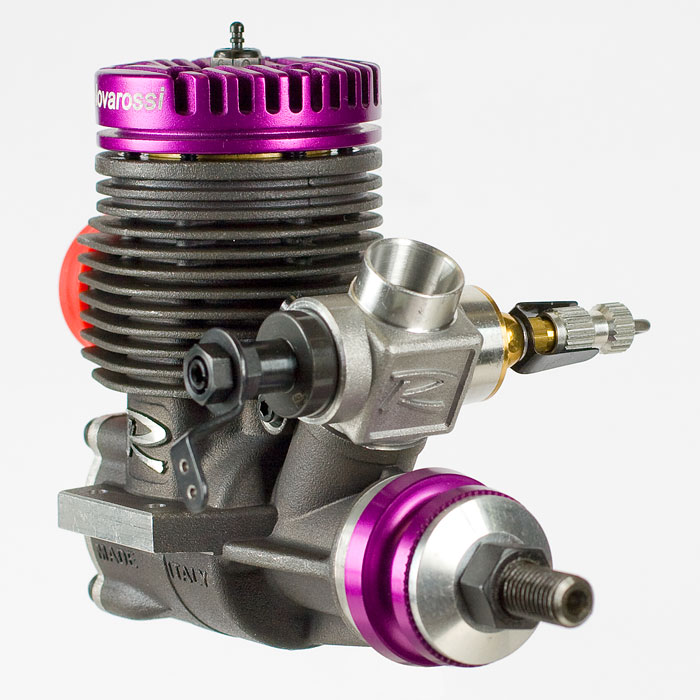

Carburettor version. Also available with carburettor code 10345 (10mm) and 10346 (11mm). |
|||||||||||||||||||||||||||||||||||||||||||||||
   |
   |
   |
